Hi Fu-Chiang and Jim, Please check Eagle AOSP HW test requirement from SB and follow it up. Do we have enough Eagle DVT samples on hand to perform power consumption test & thermal test? |
|
|
Hi SB, We have a question for test condition. For AOSP version, we don't have VPN to play SKB content and also AOSP has no youtube to play 4Kp60 video. We can try to install software into DUT, but it seems not correct for AOSP version because the realistic condition is no youtube in AOSP OTT box. So could you provide the test condition for us? Thank you. |
|
|

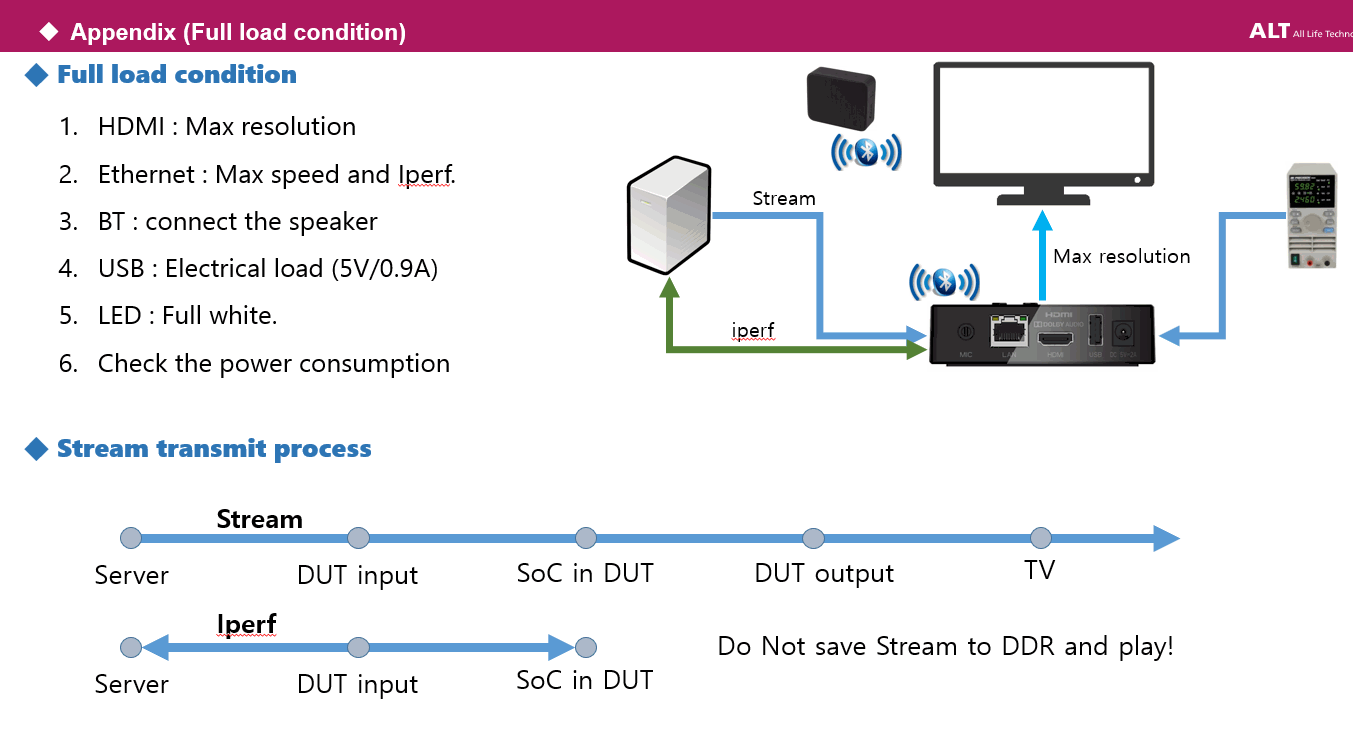

Hi Fu Chiang please see the below picture and. setup full load condition and test. AOSP cannot play you tube. use the laptop as a server. and use a program which support to the stream. fullloadcondition.gif (50,861 bytes) |
|
|
Hi SB, Kerwin, Sean and I discuss for test condition, we think we should keep the same test condition as previous test condition to play 4kp60 throught youtube. AOSP version still can install youtube despite some google packages are miss. So could we play 4kp60 throught youtube as last HW validation test condition? Thank you. |
|
|
Hi Fu Chiang what is the last test condition. please explain detail. or show the test block diagram. |
|
|
Hi SB, Just install youtube APP into AOSP version FW in the same DVT board. Playing 4kp60 video throught youtube as before HW DVT validation. The block diagram is as attached. Thank you. |
|
|
Hi Fu chiang OK. thank you |
|
|
Hi SB, We have 3 DUT been locked and cannot login in. Could you please help to un-locked the these 3 DUT for test power consumption? Mac address: ec:5c:68:1d:bd:64 ec:5c:68:1d:bd:27 ec:5c:68:1d:bd:53 Thank you. |
|
|
Hi Fu chiang these settops are unlocking. please log in quickly |
|
|
Hi SB, Thank you for informing unlocking, I have done the login-in. Thank you. |
|
|
Hi SB, The AOSP version power consumption on DVT board has been finished test. The test results are all pass under playing 4kp60 through youtube. Please see the attached report. Thank you. |
|
|
Hi Fu Chian, Sean thank you for the report. I compare DVT report with this Report. the test setup picture is same. (see the below picture) why? SKB manager may doubt that AOSP test is not correct because of that picture. isn't it? |
|
|
Hi SB, Sorry for the report did not cover from new one to old one. Update again. Thanl you. |
|
|
Dear SB We recieved DDR 4Gb report, one item DQS (write) spec out. We check with Sumsung, they comment that the spec out items are acceptable. |
|
|
Hi. Jim according to the SI report, there are two failure item. and there is no detail explanation in the capture of mail. why the Samsumg manager comment that the spec out is acceptable? Did you take a official report of failure items from Vender? ss_ddr_image.gif (102,541 bytes) |
|
|
Dear SB The tck is clock cycle time, the measurment value is 757.45ps The tDQSH is differential input high pulse width, spec: Max=0.54*tck The tDQSL is differential input low pulse width, spec: Max=0.54*tck Even the test results is out of spec, the Samsung think it is accepable for the value. Besides, we have DDR stress report to say there is no error for the test. 擷取2.PNG (98,025 bytes) 擷取.PNG (27,124 bytes) |
|
|
Hi Sean I already know the parameter and spec value I want to know very detail reason why Samsung manager thought that the spec out is acceptable? your DDR stress test and SSQ test of Vender is different test. 1. please give me the official letter and detail explanation of Samsung |
|
|
Hi Sean, Jim Could you please update the Samsung's official letter and detail explanation? |
|
|
Hi SB, I understand your concern but it's hard for us to get the official letter since the Yosun who is TW local distributor of Samsung told us Samsung will not send this kind of email. From Samsung point of view, they just a component vendor and will not guarrantee the performance for our product. Anyway, we are negotiate with Yosun FAE to see if there is any way to get the internal approval email from Samsung about our test report & test result. Hopefully, it's helpful for us to prove our test report for SKB. |
|
|
Hi SB Here's internal approval email. |
|
|
Hi Sean SKB request to add some test about AOSP Please see the attached file and update the test schedule. |
|
|
Hi SB, Here is the updated schedule. FYR. |
|
|
Hi Fu-Chiang, As Jim will be off till next Wed. please behalf of Jim to follow these test items. |
|
|
Hi, Sean Thank you for your support |
|
|
Hi Catherine, Please update BT sensitivity report on mantis by 9/6 Hi Fu-Chiang, Please prepare passive standby power consumption report and coordiante with SWQA to prepare Auto Negotiation test & CRC error report by 9/6 |
|
|
Hi SB, Please find attached for the ethernet RGMII & LED status test report. |
|
|
Hi SB, Please refer to attached file for BT RCU Sensitivity test result (Page 11,12) |
|
|
Hi SB, Update Ethernet test report of BFX-UH200 and Power Consumption test report of BFX-UH200. Thank you. |
|
|

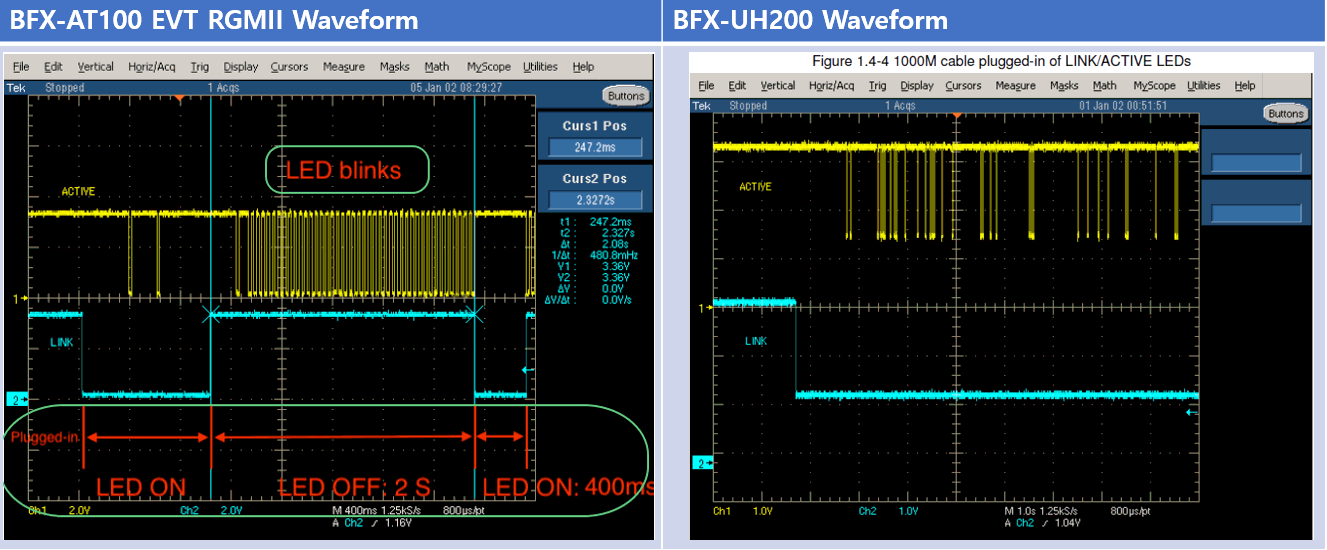

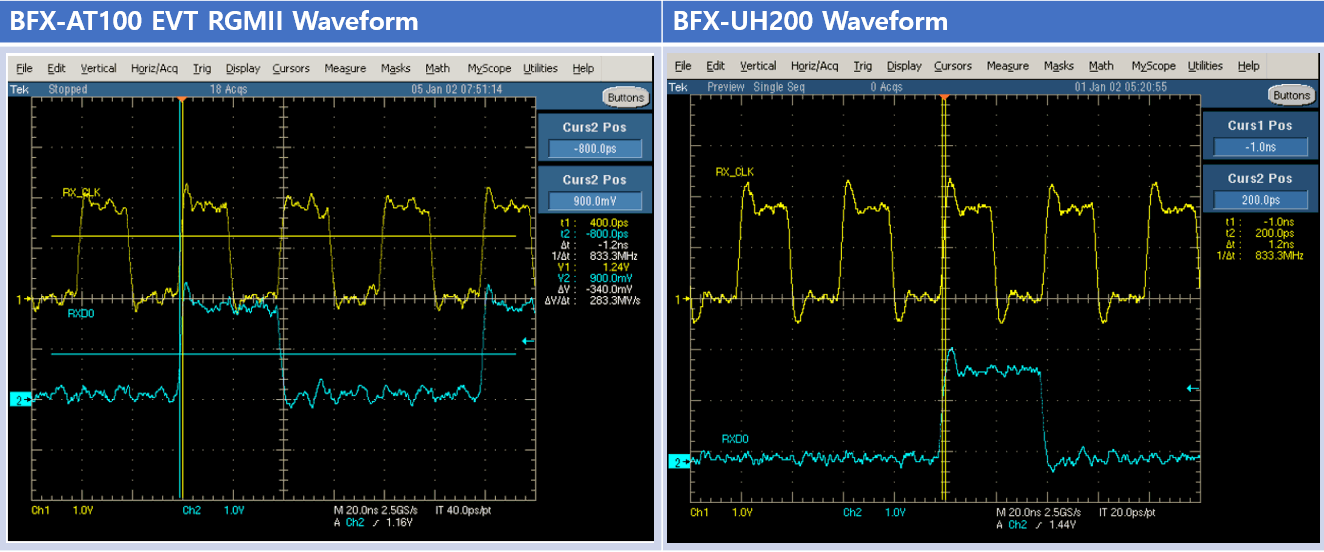

Hi Sean Thank you for updating the RGMII Timing test. 1. according to your EVT report, the waveform has a horizontal and vertical cursor line. So it is easy to check the timing at 50% position but, this BFX-UH200's report has only vetical line. It is difficult to check the timing at some waveforms (see the below picture.) Could you please add the horizontal cursor line at waveform like BFX-AT100's report. 2. Please add the comment LED on period and LED off period at the waveform (see the below picture) waveform_RGMII.gif (79,108 bytes) waveform_LEDstatusofRJ45.gif (85,981 bytes) |
|
|
Hi Fu Chiang Thank you for updating the report. according to your report, there is a "HW : 01S1" what is this? hw_sw_version.gif (2,606 bytes) |
|
|

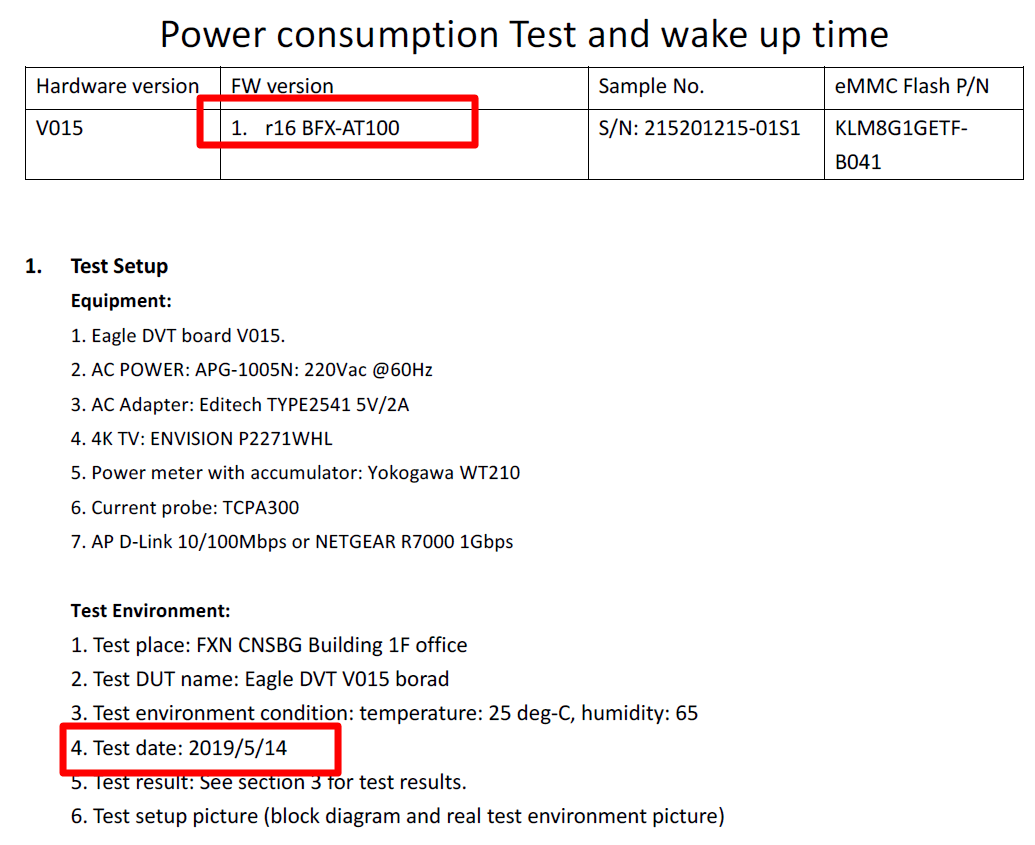

Hi Fu Chiang Thank you for updating the report "T99X171T00 V015_Power consumption_20190906_BFX-UH200.pdf" according to your report, the vesion and test date is so strange. see the below picture. power consumption_bfx-uh200.gif (54,368 bytes) |
|
|
Hi SB, Sorry, it's my misunderstanding that I modified the wrong report as ATV. The correct should be AOSP+wake up time(ATV version due to the SW and HW is the same) report as BFX-UH200 version as correct report. Please see the attached file. Thank you. |
|
|
Hi SB, HW: 01S1, SW: Eag;e AOSP means the HW version and SW version. In order not to cause confuse, we remove these wording and update. Please see the attached file. Thank you. |
|
|
Hi Fu Chiang thank you for your power consumption report I have a question. you added your comment "Note: We attached test result of BFX-AT100 test result because the Test of SW and HW are the same to BFX-AT100." You don't conduct wake up time, but just copy and paste the wake up table of BFX-AT100. is it? |
|
|
Hi SB, Yes, our discussion about that AOSP version has no passive standby mode and suggested by Mr. YOON to add the comment to report with wake up time parameters into AOSP report. Thank you. |
|
|
Dear Mr. Fu-chiang Young, I have question. I said that you commented above. But your report said that 3. Test Result The test results are all pass under 3W. Note: We attached test result of BFX-AT100 test result because the Test of SW and HW are the same to BFX-AT100. According to your report, you didn't test all power consumption test. But my word is that only passive Standby power consumption and booting time can be skipped. So active Standby power consumption and normal operation power consumption should be tested and add a data on your report. Did you test Active standby power consumption and normal operation power consumption with AOSP SW ? |
|
|
Hi Mr.Yoon, Fu-Chiang already finished power consumption measurement for 5pcs boards with AOSP SW(see the report upload by Fu-Chiang on 9/9, 19:07). So, we will verify Active standby power consumption later on. BTW, does SKB require the number of test samples? I would suggest that we measure 2pcs boards for SKB reference. Is it OK with you? |
|
|
Hi SB, For RGMII timing test, since Jim will be off till tomorrow and come back by next Monday. We will update the RGMII report to you by early of next week. |
|
|
Hi Mr. Sean Chiang, I think that the number of DUT for power comsumption test should be the same number that you use for Android TV. SKB wants to compare the result with Android TV. So they want use same number of samples. |
|
|
Hi SB Update Ethernet 100/1000 SI report |
|
|
Hi Sean. I'm late to reply your comment. 1. RGMII TEST : It is ok to update the report at this week. 2. Power consumption DUT quantity : SKB manager request that DUT no. is 5 pcs at power consumption test |
|
|
Hi Sean Could you please update the thermal surface test report. if the test is delayed, please update test schedule |
|
|
Hi SB Please refer RGMII report. Thanks |
|
|
Hi Sean Thank you for updating the report "RGMII Timing" |
|
|
Hi SB, For power consumption DUT quantity, we are OK to provide you 5pcs boards test result. However, we only have 2pcs boards on hand now.And we have another 3pcs boards located at our HsinChu HWQA site. There is one for Ethernet SI test and the others for thermal test. Our QA team is arranging thermal test for us but still not confirm the starting date yet(may start from next Monday(9/23)). Therefore, we will provide you complete test result after we finished the thermal test. We will confirm and update the schedule to you later. For thermal test, we will provide you confirmed schedule as well later. Thanks. |
|
|
Hi SB and Yoon, We have one DUT is locked and cannot login. Could you please help to un-locked the DUT. The DUT mac address is ec:5c:68:1d:bd:1a. Thank you. |
|
|
Hi Fu Chiang this model is unlocking now. please try to login |
|
|
Hi SB, The thermal test should be started from 9/23 to 10/2 for both of two conditions: New housing version and AOSP version. We will update to you once we get the results. Thanks. |
|
|
Hi SB and Yoon, We find another DUT from compliance team that also is locked. Please help to unlocked the DTU. The DUT mac address is ec:5c:68:1d:bd:21. Thank you. |
|
|
Hi Fu chiang please check your all DUT. I cannot ask SKB manager to unlock one by one. Is this last one? |
|
|
Hi SB, Sorry for the trouble for unlocked the DUT one by one. We find another DUT from RF 3rd party lab. So totally there are 2 DUTs need to unlock. DUT1: ec:5c:68:1d:bd:21 DUT2: ec:5c:68:1b:12:d1 Thank you. |
|
|
Hi Fu Chiang. 2 DUT is unlocking now. please try to login. |
|
|
Hi SB, Ok, Thank you. |
|
|
Hi SB, EEE enable/disable has been re-test and update the report. Please see the attached files. We try to fix some conditions such as the same DUT no. and turn off the google auto-update and update the YouTube to the latest version. The test results are a little bit different with last report in Aug. Thank you. |
|
|
Hi SB, EEE enable/disable has been re-test and update the report. Please see the attached files. We try to fix some conditions such as the same DUT no. and turn off the google auto-update and update the YouTube to the latest version. The test results are a little bit different with last report in Aug. Thank you. |
|
|
Hi Mr. Yoon, Update the BFX-UH200 AOSP acitve standby state power consumption into the report with 5 pcs DUTs. Thank you. |
|
|
Hi Fu Chiang Thank you for updating your report According to your report. you accumulate the power value 2 hours. and you measured the 5.8139W, 5.6828W at normal operation. you also measured 3.1210W and 3.0537W. I have a question unit of these measured values is W or Whr |
|
|
Hi SB, Accturally, it should be W not Whr. The accumulator shows Whr as unit. Thank you. |
|
|
Dear SB 1. After check with Samsung, they tried 3 days and found it's difficult to solder test kit on PCB. They can not measure without translation board. 2. Please also refer the e-mail for SI report release process. Samsung_DDR.PNG (200,691 bytes) |
|
|
Dear SB, Since Samsung failed to solder test kit on PCB, so we have no way to measure the tDQSH&tDQSL timing again on our board. Due to this reason, we ask Samsung Taiwan to negotiate with their HQ RD design team and give us an reply on why they accept the test result. And finally, they agree with it but it needs time to communicate between Samsung Taiwan AE team and HQ design team about this. Since this may related to Samsung's design margin, they need some time to provide the reason before getting internal approval from their top manager. Normally, the whole process may take around 1 month. Please be understanding and stay tuned. Thanks. |
|
|
Hi Sean Thank you for supporting the DDR issue. Please share with us subsequent progress. |
|
|
Hi Sean and Jay Lin the thermal test (for AOSP and New housing) will be finished until 02 Oct. when do you update the test report? |
|
|
Hi SB, Our QA team already finish the thermal test for new housing w/ ATV&AOSP version. They are prepaing the report now and should be able to release to us by tomorrow (10/4). |
|
|
Hi SB, Sorry for the late reply. Attached is the thermal report of BFX-AT100 & BFX-UH200. The temperature of new housing for both models are passed the spec. Thanks. |
|
|
Hi Sean Thank you for your updating report |
|
|

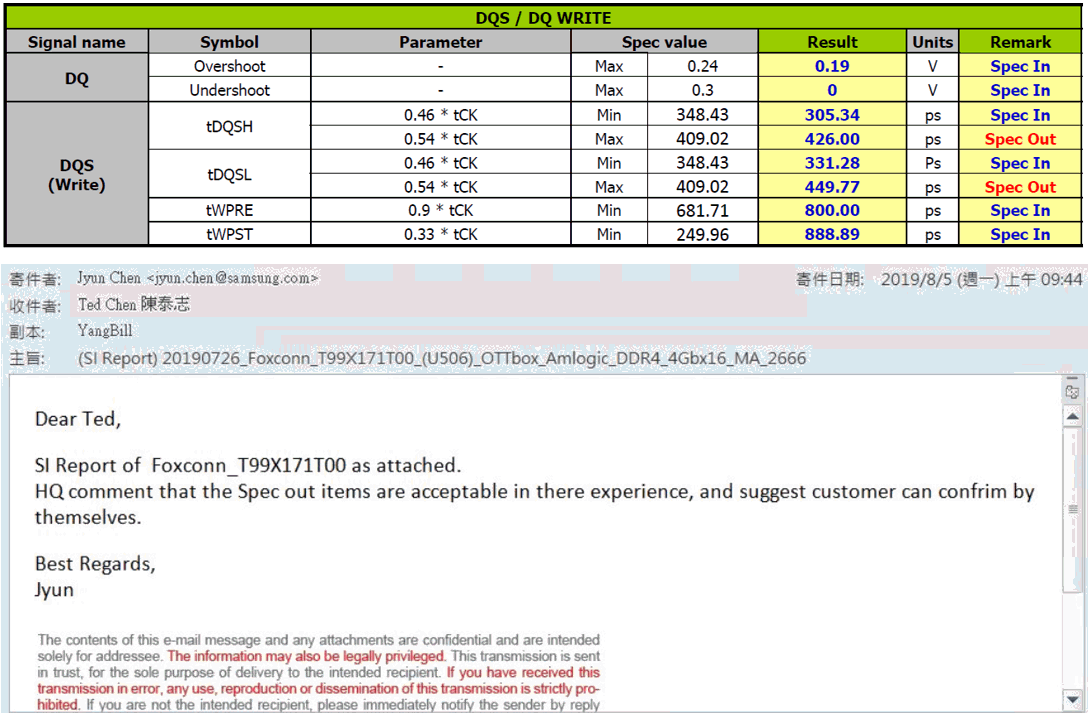

Dear SB Please refer Samsung internal e-mail. They explained that the margin is enough. DDR4_SAMSUNG.PNG (212,664 bytes) |
